Pressure control

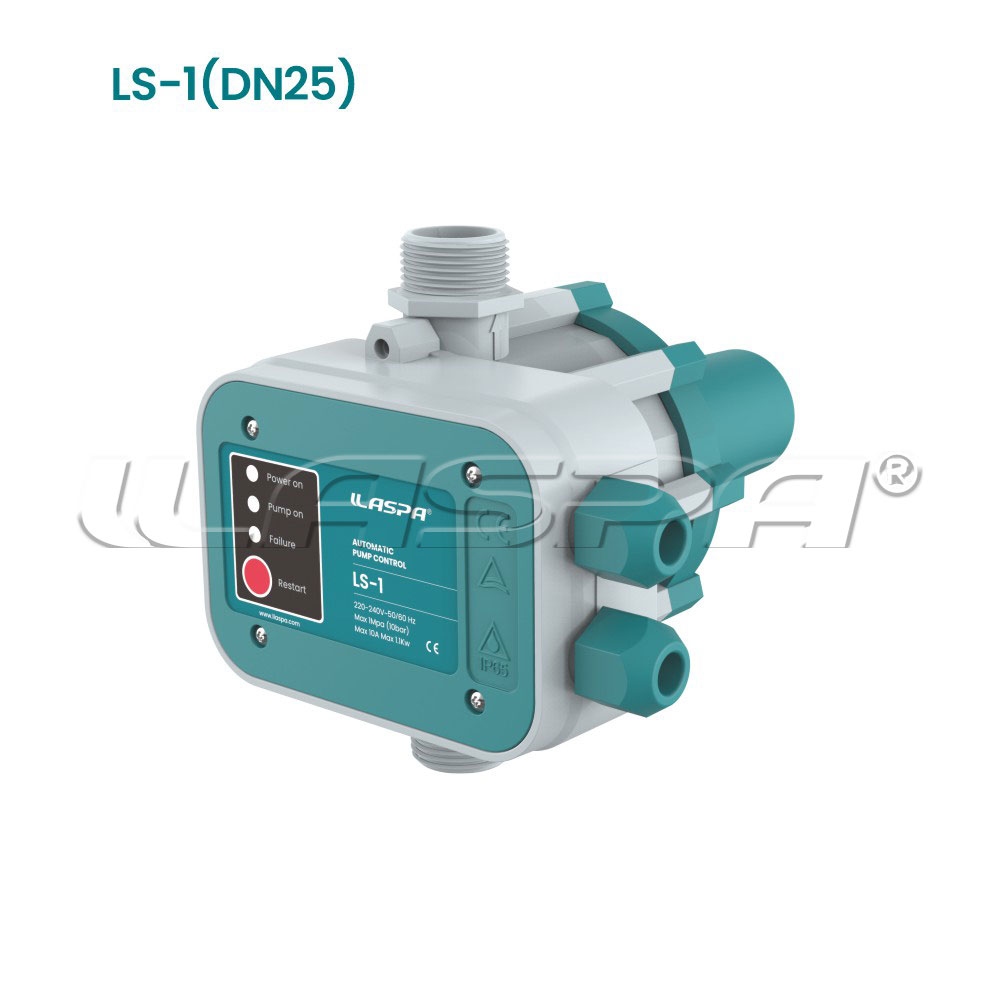

LS-1
Pressure control

Overview of features´╝Ü

Smart: automatic control of the operation of the pump, when the water shortage automatically stop the pump.
Safety: The outlet and inlet use the engineering grade environmental friendly materials, they are safe and durable.
Plug and play: simple to operate, easy to use.
Low noise: parts standardized, cost-effective, more stable.



LOADING IMAGES

Product Details:

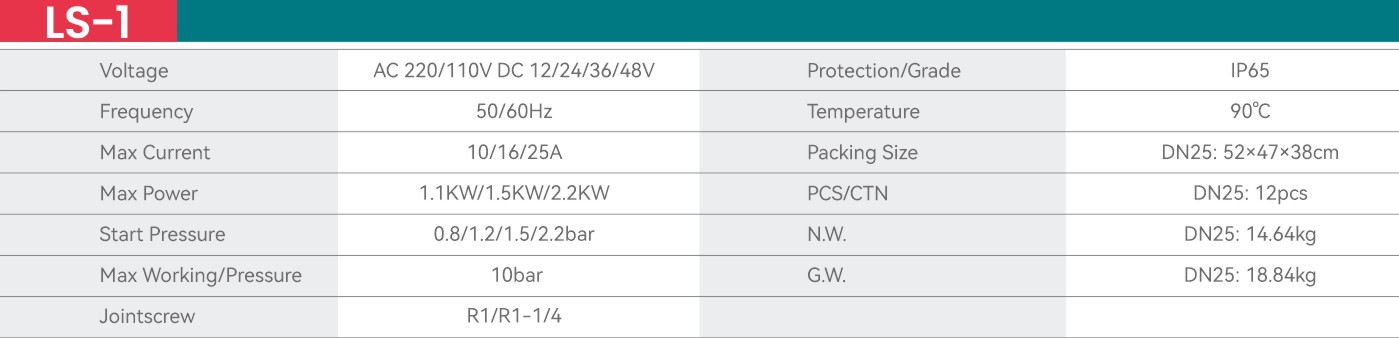

Technical Parameter:

2.2KW 3HP 40(25)A:

1.Connector:25A                               4.Rate Voltage:220-240V
2.Max Rate Current:40(25A)               5.Max Power:3HP2.2kW
3.Max Pressure:10bar                         6.Auto Restart Function After No Water

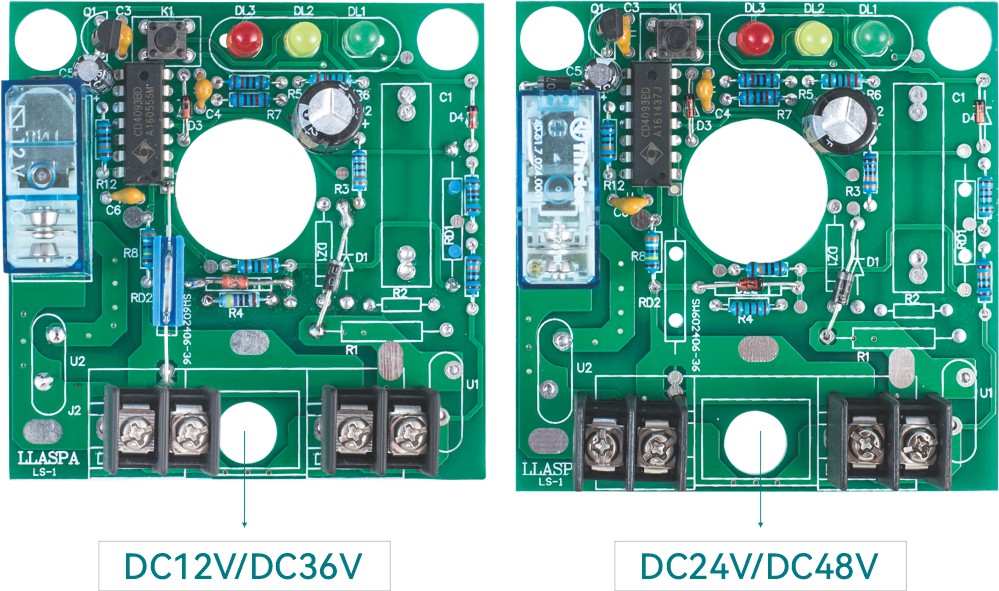

CONTROL FOR DC PUMP:

Voltage DC 12V 24V 36V 48V                          Interface: G1  G1-1/4
Current 12V: 15A  24V: 8A                               Protection class: IP65
Max Power: 200W                                           Temperature: 90°
Max. working pressure: 10BAR                         Packing size: 52*47*38
Starting pressure: 0.8 1.3 1.5BAR                      Quantity: 12
Water pump dust requirements: ≥25M
